Schüco LivIngSlide

More variety with new Panorama Design options of the lift-and-slide system.

  • A new vent profile with a minimum face width of 72 mm provides more transparency and ideal sightlines.
  • The Panorama Design fixed light offers maximum light penetration and therefore solar energy gains
  • A new zero level threshold and electric drives guarantee more increased comfort

Schüco EasySlide

A proven lift-and-slide system redefined: The new Schüco EasySlide generation.

  • Fabrication has been further simplified for even faster throughput times
  • The threshold has been optimised and aligned with the Schüco LivIngSlide threshold
  • Significant improvement in U values with a Uf of 1.41 W/(m²K)

Schüco SoftSlide

The new sliding system for patio doors, partition units and porches.

  • Double, triple, quadruple and sextuple vent units and fixed frames possible
  • The specially matched brush seals guarantee smooth sliding of the sliding vents
  • Increased burglar resistance with anti-lift-out device and an aluminium interlock

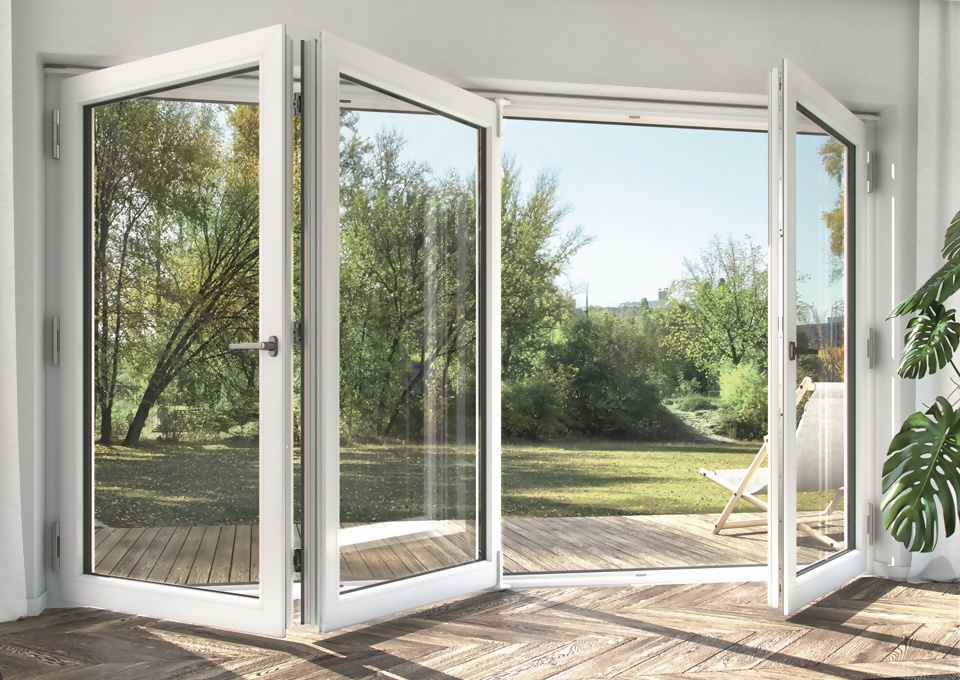

Schüco LivIng bi-fold door

The new bi-fold solution in the Schüco LivIng series provides maximum opening widths. The individual units are simply folded into narrow stacks and pushed to the side – quick and compact. This creates the ideal connection between the interior and exterior.

  • The ideal solution for both private homes and commercial real estate
  • Innovative gasket technology ensures the best protection against cold, wet and noise


Back

Panorama

Current architectural design trends call for narrower and narrower frame sightlines. We design living spaces with panoramic views. For even more comfort and aesthetic appeal.

P1 | Schüco ASE 80.HI lift-and-slide door


  • Schüco ASE 80.HI lift-and-slide system
  • Surface finish:
    • Outside: Black 100
    • Inside: Black 100



lift-and-slide system Schüco ASE 80.HI

System properties

  • The next generation of lift-and-slide system combines the material advantages of aluminium with high thermal insulation up to passive house level
  • The modular and scalable aluminium profile system captivates with the reduced DesignLine interlock section of the vents, which allows the frame units to visually recede into the background
  • User-specific configuration. Options such as the Schüco SmartStop and Schüco SmartClose security and comfort support systems ensure the best handling possible
  • A wide variety of opening types offers solutions for virtually any application
  • Multifunctional components and prefabricated construction parts reduce fabrication time and increase process reliability

P2 | lift-and-slide-door

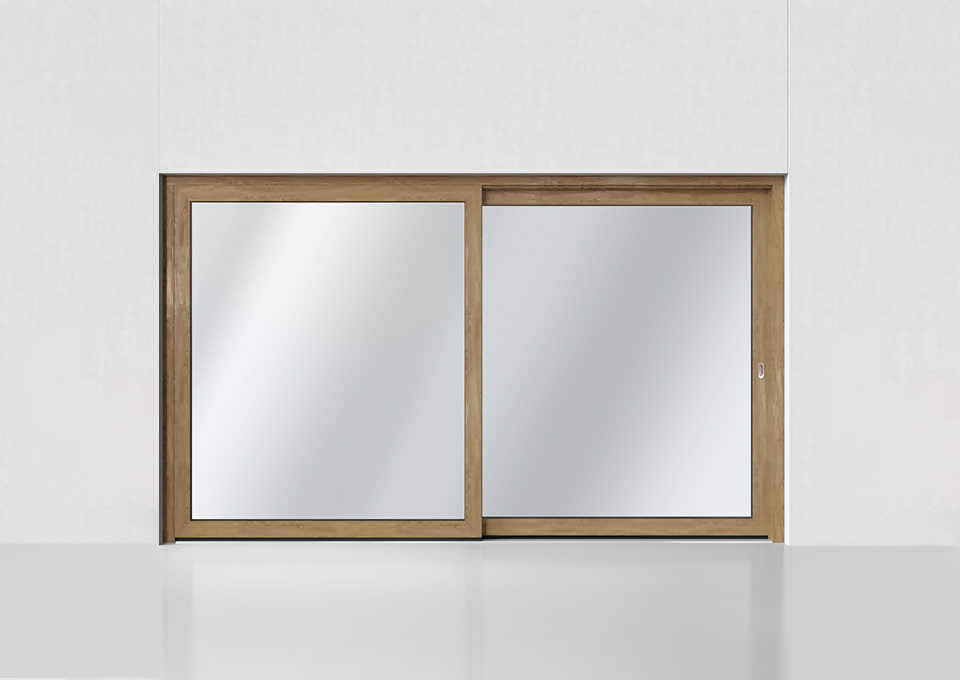

Schüco EasySlide – new generation


  • Schüco EasySlide lift-and-slide system (new generation)
  • Surface finish:
    • Outside: Schüco UnlimitedFinish, Turner oak
    • Inside: Schüco UnlimitedFinish, Turner oak
  • Schüco lift-and-slide fitting (RC2)


Schüco EasySlide – new generation

System properties

  • Excellent thermal insulation with a Uf value of 1.41 W/(m²K)
  • Vent weights up to 300 kg possible
  • Wide choice of different unit types
  • Glazing options up to 42 mm
  • Easy to operate
  • Simplified fabrication of RC2 units thanks to optimised centre joint
  • Delivery includes lift-and-slide fittings from a single source
  • Threshold has been adapted to match that of Schüco LivIngSlide
  • Ease of fabrication has been further improved for even shorter throughput times

surface finishes

Schüco UnlimitedFinish

  • Range of standard and special foils with over 200 single colours and woodgrain finishes
  • Foils are fade-resistant, resistant to weathering and tried and tested over many years
  • Uniform colour concept for all Schüco PVC-U window, door and sliding systems
  • Rapid availability of standard foils

SCHÜCO LIFT-AND-SLIDE FITTINGS

Schüco lift-and-slide fittings

  • Schüco fittings system includes all components for complete fittings installation for lift-and-slide doors
  • Design details for smooth, functional sliding
  • Handle design adapted to match the Schüco window and door handle design
  • Also designed for very large vent weights
  • Easy to operate for decades
  • Can be constructed up to resistance class 2 (RC2)
  • Range of unit options available

P3 | lift-and-slide door

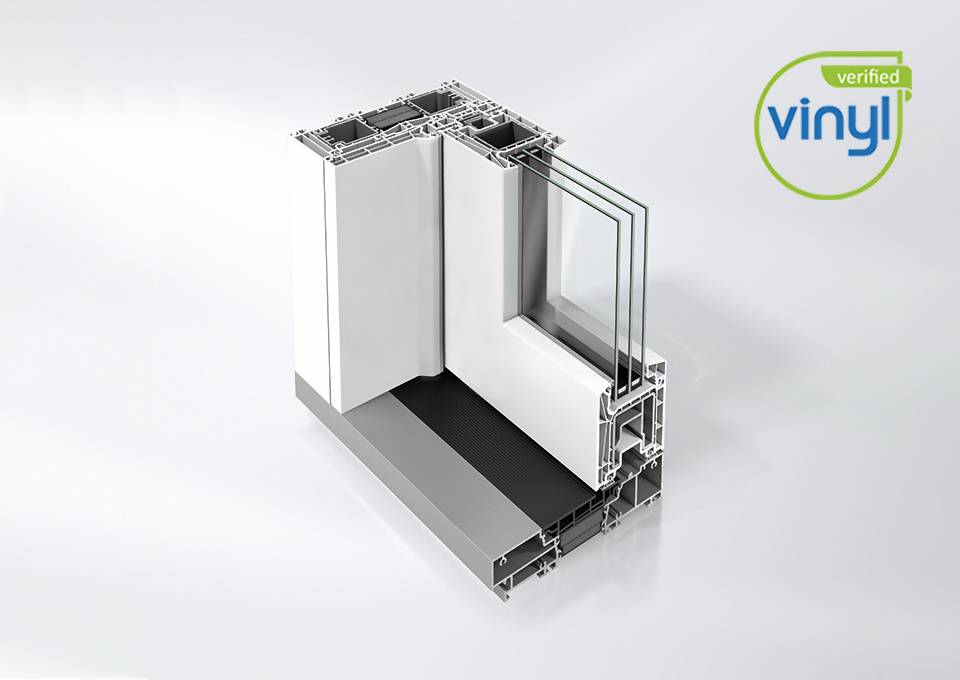

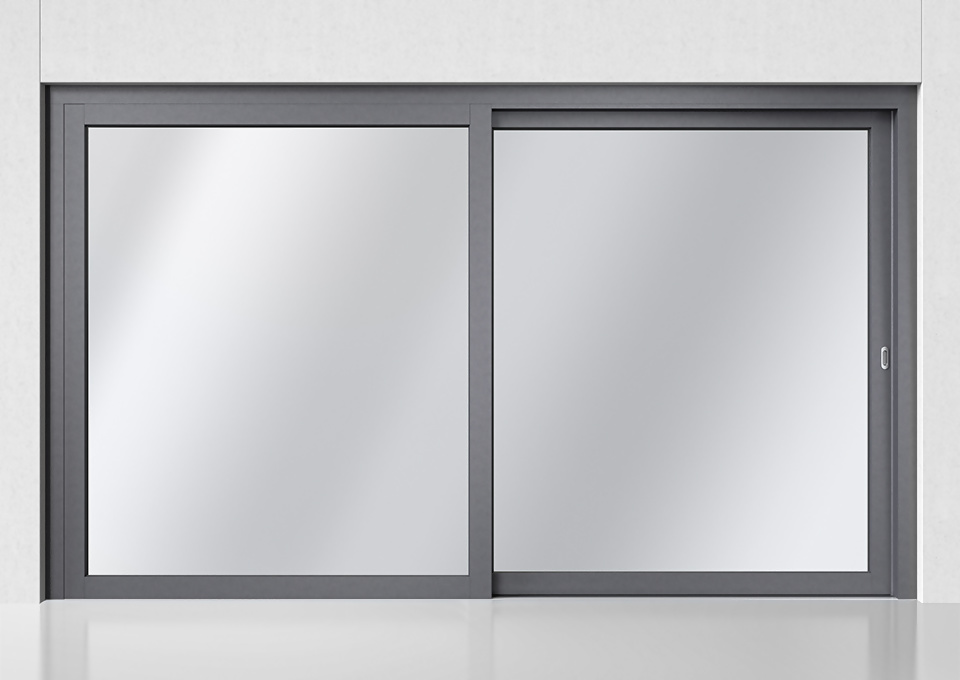

Schüco LivIngSlide lift-and-slide door with 0 mm threshold and comfort feature


  • Schüco LivIngSlide lift-and-slide system
  • Surface finish:
    • Outside: Schüco TopAlu, DB 703
    • Inside: Schüco AutomotiveFinish, SAF-DB 703
  • Schüco lift-and-slide fitting (RC2) with Comfort Stop
  • Easy-access threshold: 0 mm


Schüco LivIngSlide

System properties

  • Highly thermally insulated system for Uf values as low as 1.3 W/(m²K)
  • Integration in the Schüco LivIng platform enables use of identical parts and system reliability
  • Can be used in newbuilds and renovation projects thanks to the frame trim basic depth of 194 mm
  • Innovative, weldable EPDM rubber gaskets
  • Delivery includes Schüco lift-and-slide fittings from a single source
  • Comfort fittings available with concealed electric drive
  • Optional panorama design available for fixed lights and vents
  • Barrier-free threshold available in 0 and 20 mm designs


surface finishes

Schüco TopAlu

  • On the outside, a high-quality appearance with a highly durable, coated aluminium surface finish
  • On the inside, the easy-to-maintain PVC-U surface
  • All the advantages of modern PVC-U windows in terms of thermal insulation, weathertightness, maintenance and design are retained
  • Superior design options in all RAL and anodised colour shades
  • Long service life increases the value of the property for the long term
  • Allows the perfect integration of PVC-U units in aluminium façades
  • Efficient fabrication and simple clip-on installation
  • Supplied with coating

Schüco AutomotiveFinish

  • Exclusive metallic colours for Schüco PVC-U systems
  • Colour application process for outside and inside
  • Tone-on-tone design option for windows, doors and accessories
  • Optimum properties in terms of:
    • Abrasion
    • Permanent colour stability
    • Resistance to chemicals and environmental influences
  • Attractive price/performance ratio

SCHÜCO LIFT-AND-SLIDE FITTINGS

Schüco lift-and-slide fittings

  • Schüco fittings system includes all components for complete fittings installation for lift-and-slide doors
  • Design details for smooth, functional sliding
  • Handle design adapted to match the Schüco window and door handle design
  • Also designed for very large vent weights
  • Easy to operate for decades
  • Can be constructed up to resistance class 2 (RC2)
  • Range of unit options available

P4 | lift-and-slide door

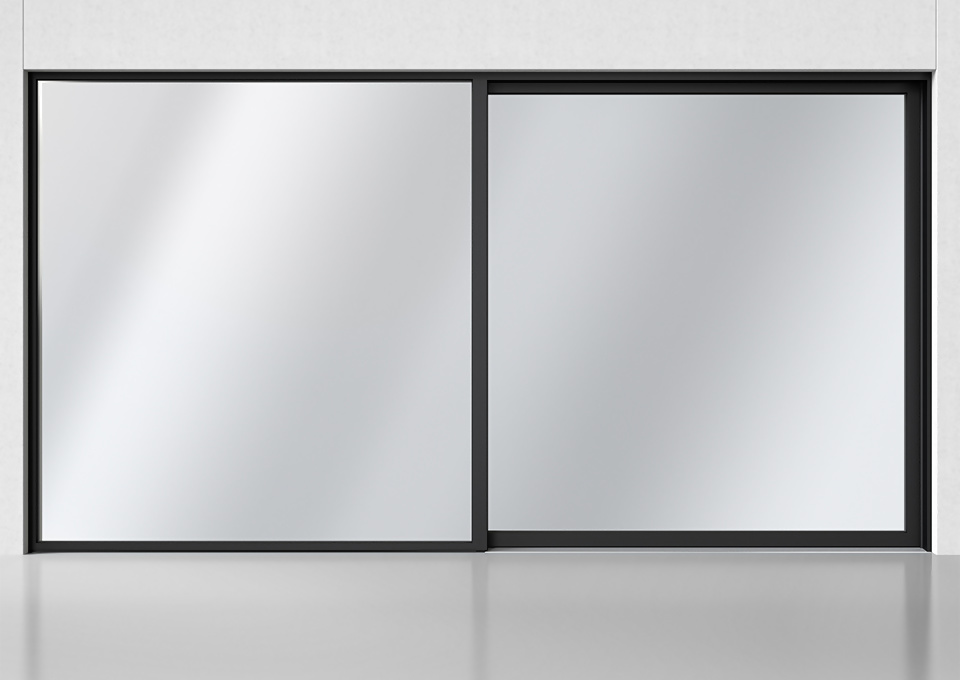

Schüco LivIngSlide lift-and-slide door with Panorama fixed light + vent and motorised lift-and-slide function


  • Schüco LivIngSlide lift-and-slide system (Panorama version)
  • Surface finish:
    • Outside: Schüco UnlimitedFinish, Black ulti-matt
    • Inside: Schüco UnlimitedFinish, White ulti-matt
  • Schüco lift-and-slide fitting with integrated, motorised sliding drive



Schüco LivIngSlide

System properties

  • Highly thermally insulated system for Uf values as low as 1.3 W/(m²K)
  • Integration in the Schüco LivIng platform enables use of identical parts and system reliability
  • Can be used in newbuilds and renovation projects thanks to the frame trim basic depth of 194 mm
  • Innovative, weldable EPDM rubber gaskets
  • Delivery includes Schüco lift-and-slide fittings from a single source
  • Comfort fittings available with concealed electric drive
  • Optional panorama design available for fixed lights and vents
  • Barrier-free threshold available in 0 and 20 mm designs


surface finishes

Schüco UnlimitedFinish

  • Range of standard and special foils with over 200 single colours and woodgrain finishes
  • Foils are fade-resistant, resistant to weathering and tried and tested over many years
  • Uniform colour concept for all Schüco PVC-U window, door and sliding systems
  • Rapid availability of standard foils

SCHÜCO LIFT-AND-SLIDE FITTINGS

Schüco lift-and-slide fittings

  • Schüco fittings system includes all components for complete fittings installation for lift-and-slide doors
  • Design details for smooth, functional sliding
  • Handle design adapted to match the Schüco window and door handle design
  • Also designed for very large vent weights
  • Easy to operate for decades
  • Can be constructed up to resistance class 2 (RC2)
  • Range of unit options available
