Schüco

Back

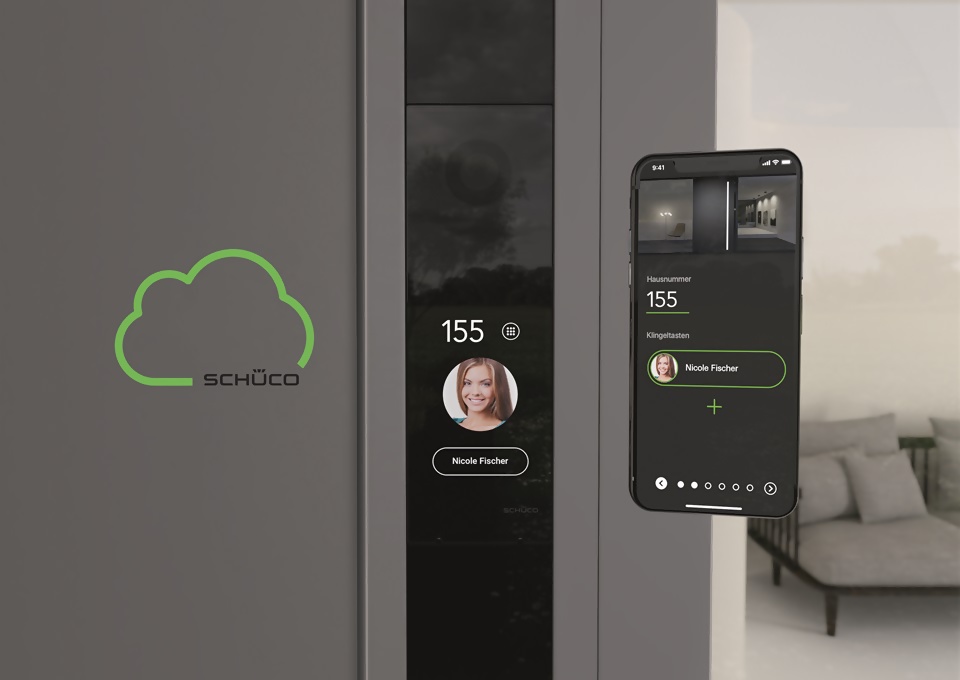

Schüco DCS SmartTouch

Smart door intercom system for intelligent Schüco PVC-U and aluminium entrance doors with reliable access control, HD camera, doorbell, night vision and the latest internet technology.

  • 24/7 reception as the transmission is automatically adjusted to the regional network conditions
  • Reduced commissioning: no previous training or knowledge of the system required, therefore suitable for any building infrastructure. Only an internet connection is required
  • Flexibility: the Schüco Cloud enables connectivity with various Smart Home systems

Schüco BlueCon

Suited to access control in family homes and apartment buildings or in offices.

  • The door lock is very easy to control via an app on a smartphone
  • With the double AES 128 bit encryption technology, the system meets the highest security requirements
  • Can be linked to an existing Airbnb account
  • Simple Plug&Play installation
  • Can be retrofitted
Back

Arrival

The front door doesn't just provide direct access to the inside of a home, it also gives a first glimpse of the inhabitants' character.

A1 | entrance door

Schüco LivIng 82 AS entrance door with leaf-enclosing door infill and smart door intercom system


  • Schüco LivIng 82 AS door system
  • Surface finish:
    • Outside: Schüco TopAlu, Black 100
    • Inside: Schüco UnlimitedFinish, Alux anthracite
  • Schüco MultiTec door fitting with electric lock
  • Smart door intercom system: Schüco DCS SmartTouch
  • Easy-access threshold: 20 mm
  • Leaf-enclosing door infill

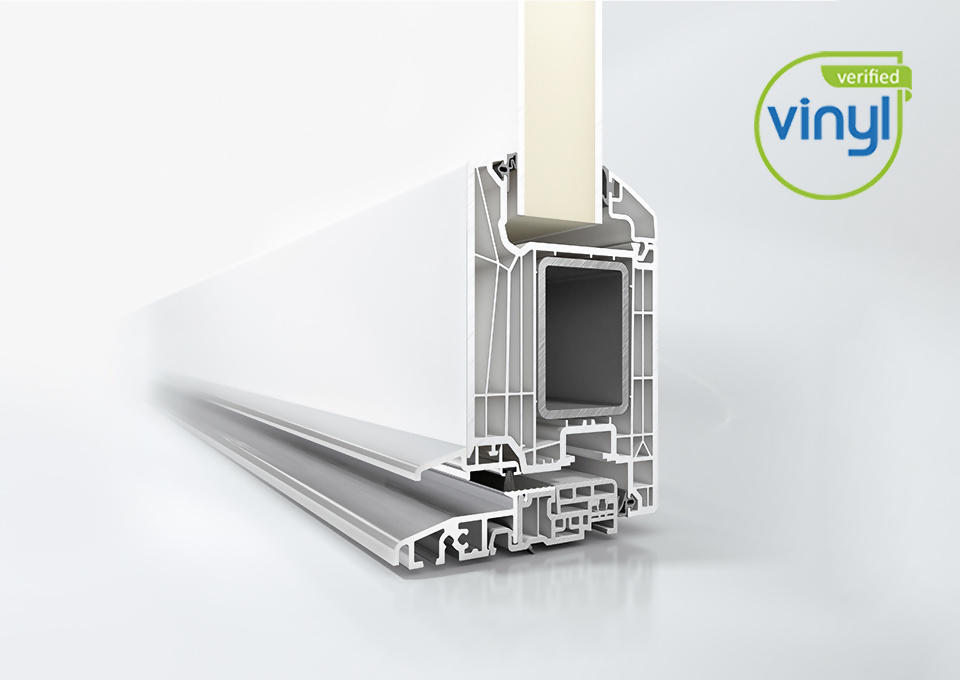

Schüco LivIng 82 AS

System properties

  • Innovative 7-chamber system for outstanding thermal insulation (Uf) as low as 1.1 W/(m²K)
  • Two continuous sealing levels for effective protection against draughts, rain and the cold
  • Increased basic depth of 82 mm for added security and burglar resistance
  • Complete system with many different types of attachment and supplementary profiles: can be used in private residential construction and commercial construction – in newbuilds or renovations


Gaskets

  • High-quality weldable EPDM gaskets rolled in the factory
  • EPDM is a top-class sealing material and has been used successfully in practice for many years, in fields such as medicine, the aerospace industry and the automotive industry.
  • Gaskets made from innovative EPDM for optimum sealing effect and permanent elasticity guarantee low maintenance and retain the value of the property
  • All the gaskets are characterised by their excellent recovery properties and permanent elasticity

Mechanical fixing of leaf-enclosing infills

  • No bonding of door infills means easy installation with just a few steps, preventing long idle and curing times
  • Dismantling and installation possible at any time
  • When changing the door infill, it is not necessary to replace the entire leaf frame
  • Clamping angle accommodates tolerances in the best possible way (e.g. in the event of temperature-related lengthwise expansion or infill and leaf sizes which are quite similar)
  • The profile contour resembles the original leaf contour
  • Can also be used with Schüco TopAlu (in standard combination)

surface finishes

Schüco TopAlu

  • On the outside, a high-quality appearance with a highly durable, coated aluminium surface finish
  • On the inside, the easy-to-maintain PVC-U surface
  • All the advantages of modern PVC-U windows in terms of thermal insulation, weathertightness, maintenance and design are retained
  • Superior design options in all RAL and anodised colour shades
  • Long service life increases the value of the property for the long term
  • Allows the perfect integration of PVC-U units in aluminium façades
  • Efficient fabrication and simple clip-on installation
  • Supplied with coating

Schüco UnlimitedFinish

  • Range of standard and special foils with over 200 single colours and woodgrain finishes
  • Foils are fade-resistant, resistant to weathering and tried and tested over many years
  • Uniform colour concept for all Schüco PVC-U window, door and sliding systems
  • Rapid availability of standard foils


Schüco Door Fittings

Schüco MultiTec

  • Burglar resistance to RC 2
  • Small number of components for simplified fabrication and minimised warehouse storage
  • Locks with multi-point locking can be used with up to 5 locking points
  • Automatic locking and unlocking possible without using a key
  • Various handle and hinge designs


Schüco DCS SmartTouch

  • Smart door intercom system for intelligent PVC-U entrance doors with reliable access control, HD camera, doorbell, night vision and the latest internet technology
  • 24/7 reception as the transmission is automatically adjusted to the regional network conditions
  • Reduced commissioning: no previous training or knowledge of the system required, therefore suitable for any building infrastructure. Only an internet connection is required.
  • Flexibility: the Schüco Cloud enables connectivity with various Smart Home systems

EASY-ACCESS THRESHOLD

EASY-ACCESS 20 MM THRESHOLD

  • Meets all the requirements for barrier-free building in accordance with DIN 18040 thanks to the low installation depth of 20 mm
  • Different kick plate profiles act as levellers to provide even more comfort
  • Fully concealed fixing
  • Suitable for inward-opening and outward-opening, front and side entrance doors, as well as window doors
  • Available in the following colours: aluminium black/black and aluminium anodised/grey

A2 | entrance door

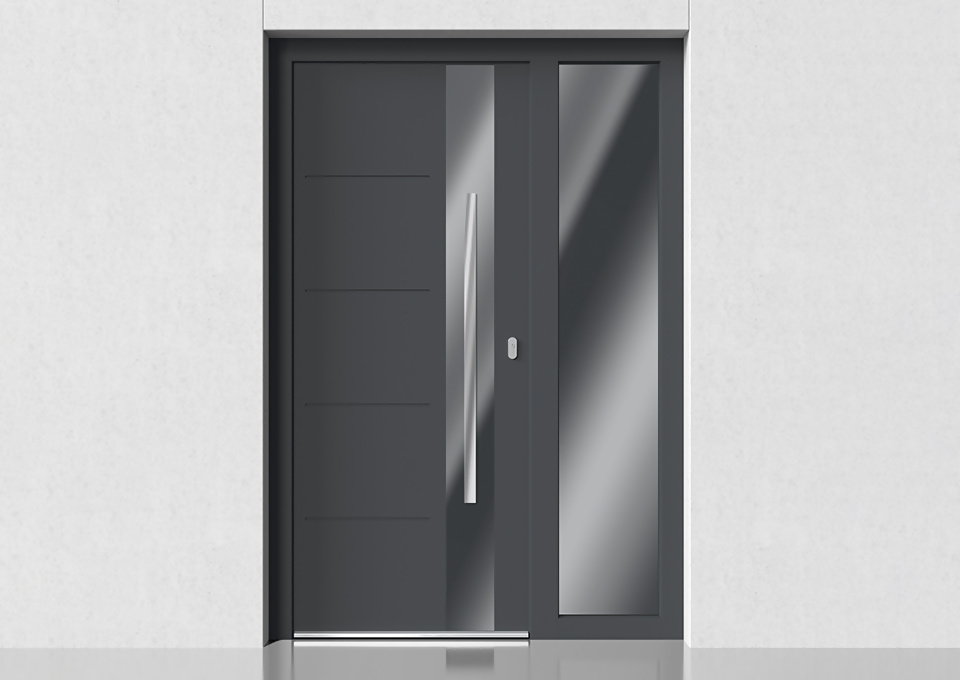

Schüco LivIng 82 AS entrance door with leaf-enclosing door infill, sidelight and bluetooth unit


  • Schüco LivIng 82 AS door system
  • Surface finish:
    • Outside: Schüco UnlimitedFinish, Anthracite grey ulti-matt
    • Inside: Schüco UnlimitedFinish, Anthracite grey ulti-matt
  • Schüco MultiTec door fitting with swing bolt lock
  • Bluetooth unit for access control: Schüco BlueCon
  • Easy-access threshold: 0 mm
  • Leaf-enclosing door infill

Schüco LivIng 82 AS

System properties

  • Innovative 7-chamber system for outstanding thermal insulation (Uf) as low as 1.1 W/(m²K)
  • Two continuous sealing levels for effective protection against draughts, rain and the cold
  • Increased basic depth of 82 mm for added security and burglar resistance
  • Complete system with many different types of attachment and supplementary profiles: can be used in private residential construction and commercial construction – in newbuilds or renovations


Gaskets

  • High-quality weldable EPDM gaskets rolled in the factory
  • EPDM is a top-class sealing material and has been used successfully in practice for many years, in fields such as medicine, the aerospace industry and the automotive industry.
  • Gaskets made from innovative EPDM for optimum sealing effect and permanent elasticity guarantee low maintenance and retain the value of the property
  • All the gaskets are characterised by their excellent recovery properties and permanent elasticity

EINZIGARTIGE SCHÜCO DICHTUNGEN AUS EPDM

EPDM-Kautschuk ist ein Dichtungswerkstoff der Extraklasse, der bei Schüco auch in Kunststoff-Systemen Verwendung findet. EPDM-Dichtungen bieten ein ausgezeichnetes Rückstellverhalten, das beste Dichtigkeit der Fenster- und Türelemente über viele Jahre garantiert und damit Schimmelpilzbildung verhindert. Das sorgt für eine lange Lebensdauer und Werterhalt für Fenster und Bauwerk.

Fabrication

  • High degree of flexibility, efficiency and process reliability during fabrication and installation
  • Due to a special, patented technology for welding the profiles, the gaskets do not require any additional processing
  • Clip hooks on the double-vent profiles as positioning aid for simple installation and central screw fixing


surface finishes

Schüco UnlimitedFinish

  • Range of standard and special foils with over 200 single colours and woodgrain finishes
  • Foils are fade-resistant, resistant to weathering and tried and tested over many years
  • Uniform colour concept for all Schüco PVC-U window, door and sliding systems
  • Rapid availability of standard foils


Schüco door fittings

Schüco MultiTec

  • Burglar resistance to RC 2
  • Small number of components for simplified fabrication and minimised warehouse storage
  • Locks with multi-point locking can be used with up to 5 locking points
  • Automatic locking and unlocking possible without using a key
  • Various handle and hinge designs


Schüco BlueCon

  • Suited to access control in family homes and apartment buildings or in offices
  • The door lock is very easy to control via an app on a smartphone
  • With the double AES 128 bit encryption technology, the system meets the highest security requirements
  • Can be linked to an existing Airbnb account
  • Simple Plug&Play installation
  • Can be retrofitted


easy-access threshold

easy-access 0 mm threshold

  • All requirements for barrier-free construction met in accordance with DIN 18040
  • No bottom threshold or door rebate on account of the level threshold
  • Preassembled thermally broken threshold profile
  • Water tightness class 7A
  • Can be used with standard drainage systems

A3 | entrance door

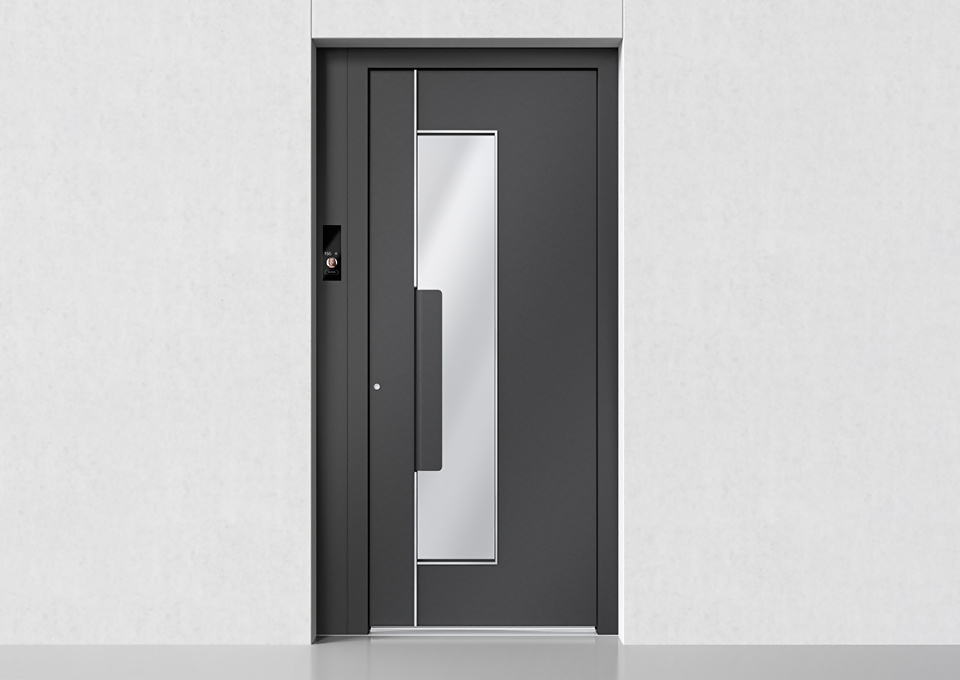

Schüco AD UP 75 entrance door with leaf-enclosing door infill and smart door intercom system and bluetooth unit


  • Schüco AD UP 75  door system
  • Surface Finish:
    • Outside: Black 100
    • Inside: Black 100
  • Electric lock with A-opener
  • Smart door intercom system: Schüco DCS SmartTouch
  • Bluetooth unit: Schüco BlueCon
  • Easy-access threshold: 0 mm
  • Leaf-enclosing door infill with illuminated flush pull grip integrated into the infill

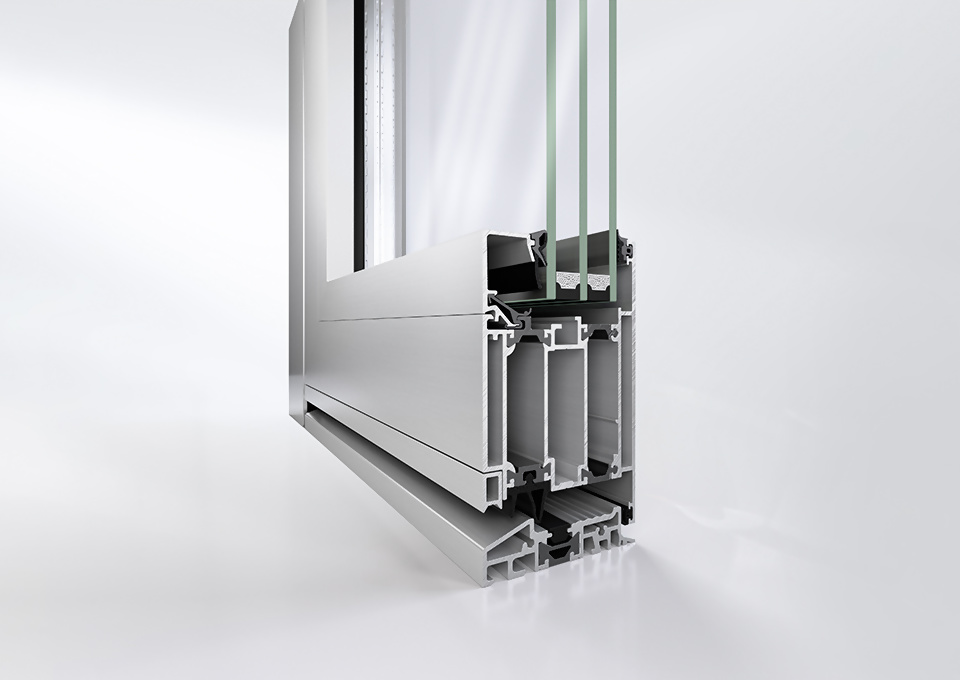

Door System Schüco AD UP 75

Systemeigenschaften

  • Universal use as heavily used commercial door and stylish entrance door
  • With its groundbreaking construction principle and modular gasket system, the system sets new standards in thermal insulation, weathertightness, load-bearing capacity and durability for aluminium door systems
  • Good thermal insulation with Ud value of door ≥1.10 W/(m²·K)
  • With a broad portfolio of fittings and design options, it allows stylish door solutions which meet every requirement for all areas of life and work
  • The door system is perfect for integration with door communication and access control systems
  • The same construction principle across all basic depths and maximum use of identical parts ensure professional, reliable fabrication

Schüco DCS SmartTouch

  • Smart door intercom system for intelligent PVC-U entrance doors with reliable access control, HD camera, doorbell, night vision and the latest internet technology
  • 24/7 reception as the transmission is automatically adjusted to the regional network conditions
  • Reduced commissioning: no previous training or knowledge of the system required, therefore suitable for any building infrastructure. Only an internet connection is required.
  • Flexibility: the Schüco Cloud enables connectivity with various Smart Home systems

Schüco BlueCon

  • Suited to access control in family homes and apartment buildings or in offices
  • The door lock is very easy to control via an app on a smartphone
  • With the double AES 128 bit encryption technology, the system meets the highest security requirements
  • Can be linked to an existing Airbnb account
  • Simple Plug&Play installation
  • Can be retrofitted


A4 | entrance door

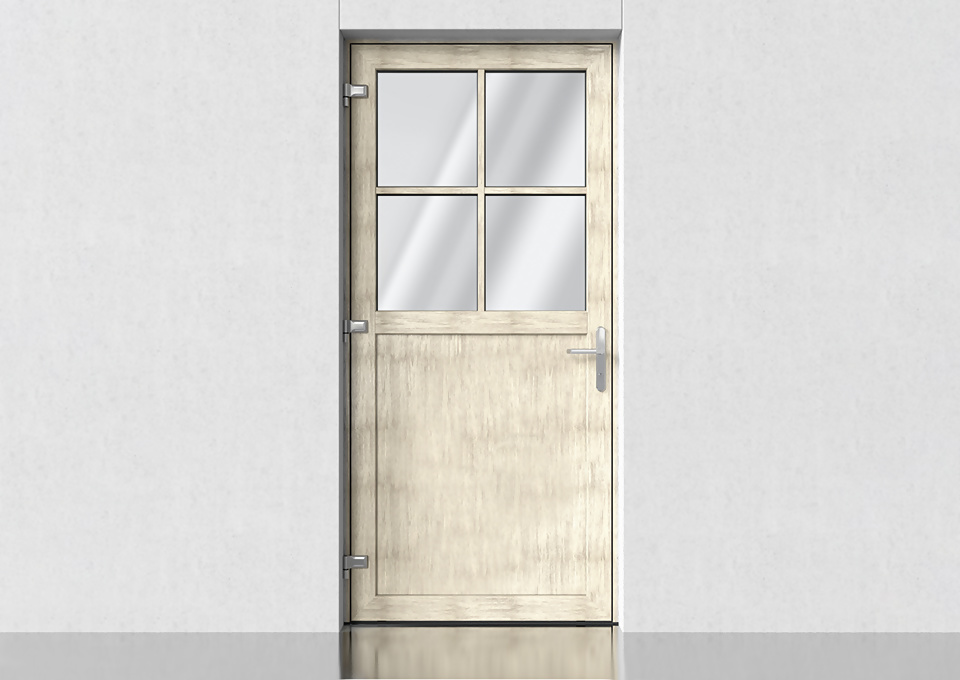

Schüco Alu Inside Nordic entrance door, outward-opening


  • Schüco Alu Inside Nordic door system
  • Surface finish:
    • Outside: Schüco UnlimitedFinish, Sheffield oak light
    • Inside: Schüco UnlimitedFinish, Sheffield oak light
  • Schüco MultiTec door fitting with new Nordic entrance door hinge
  • Nordic threshold
  • Framed infill

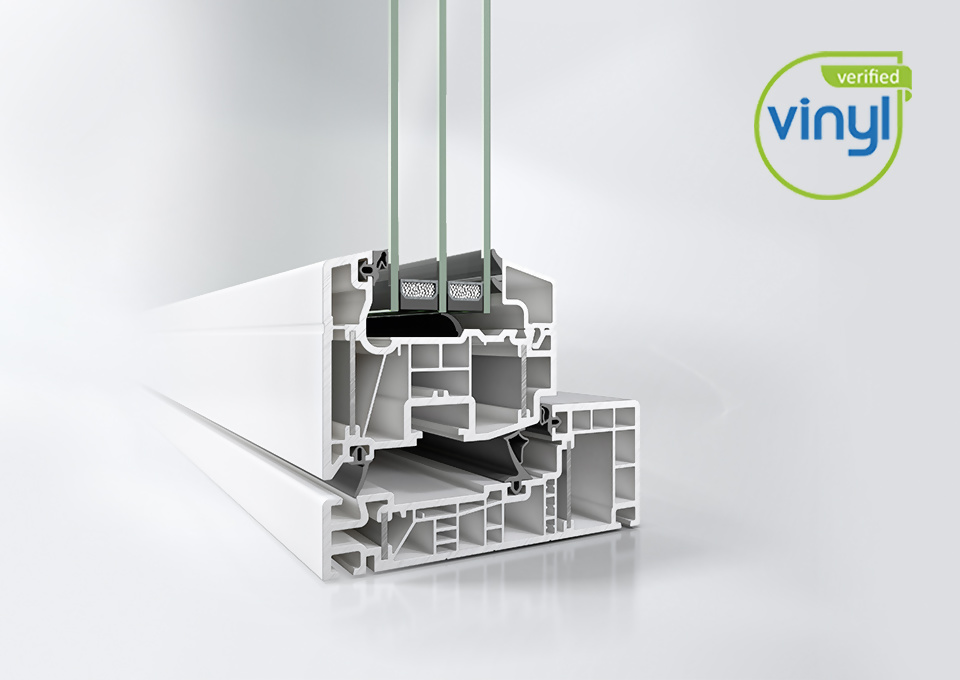

Schüco Alu Inside Nordic

System properties

  • Steel-free frame construction for a low weight and excellent thermal insulation
  • 11 or 7-chamber profile construction
  • Excellent thermal insulation properties: Uf value as low as 0.87 W/(m²K)
  • E-Ref values of -13.76 to 21.7 kWh/m² per annum
  • Outstanding test results from the “Danish Technological Institute”
  • Additional reinforcing or insulation chambers for special requirements


surface finishes

Schüco UnlimitedFinish

  • Range of standard and special foils with over 200 single colours and woodgrain finishes
  • Foils are fade-resistant, resistant to weathering and tried and tested over many years
  • Uniform colour concept for all Schüco PVC-U window, door and sliding systems
  • Rapid availability of standard foils


Schüco Door fittings

Schüco MultiTec

  • Burglar resistance to RC 2
  • Small number of components for simplified fabrication and minimised warehouse storage
  • Locks with multi-point locking can be used with up to 5 locking points
  • Automatic locking and unlocking possible without using a key
  • Various handle and hinge designs
